The back patio had potential that I kept promising myself I would eventually develop. Good light, French doors opening directly onto the deck, a view of the garden that was genuinely pretty from the inside, but stepping outside felt like stepping into an unfinished thought. No shade structure meant the deck was unusable from late morning until late afternoon in summer. No defined overhead space meant it never felt like a room, just an extension of the ground. I had looked at freestanding pergola kits and kept stalling on where to anchor them, how to stabilize them without digging footings in an established deck, and whether the finished result would look like a designed feature or a purchased kit placed outside a house. Attached to house pergola ideas kept coming up in my research as the alternative, and I kept thinking they required more construction knowledge than I had.

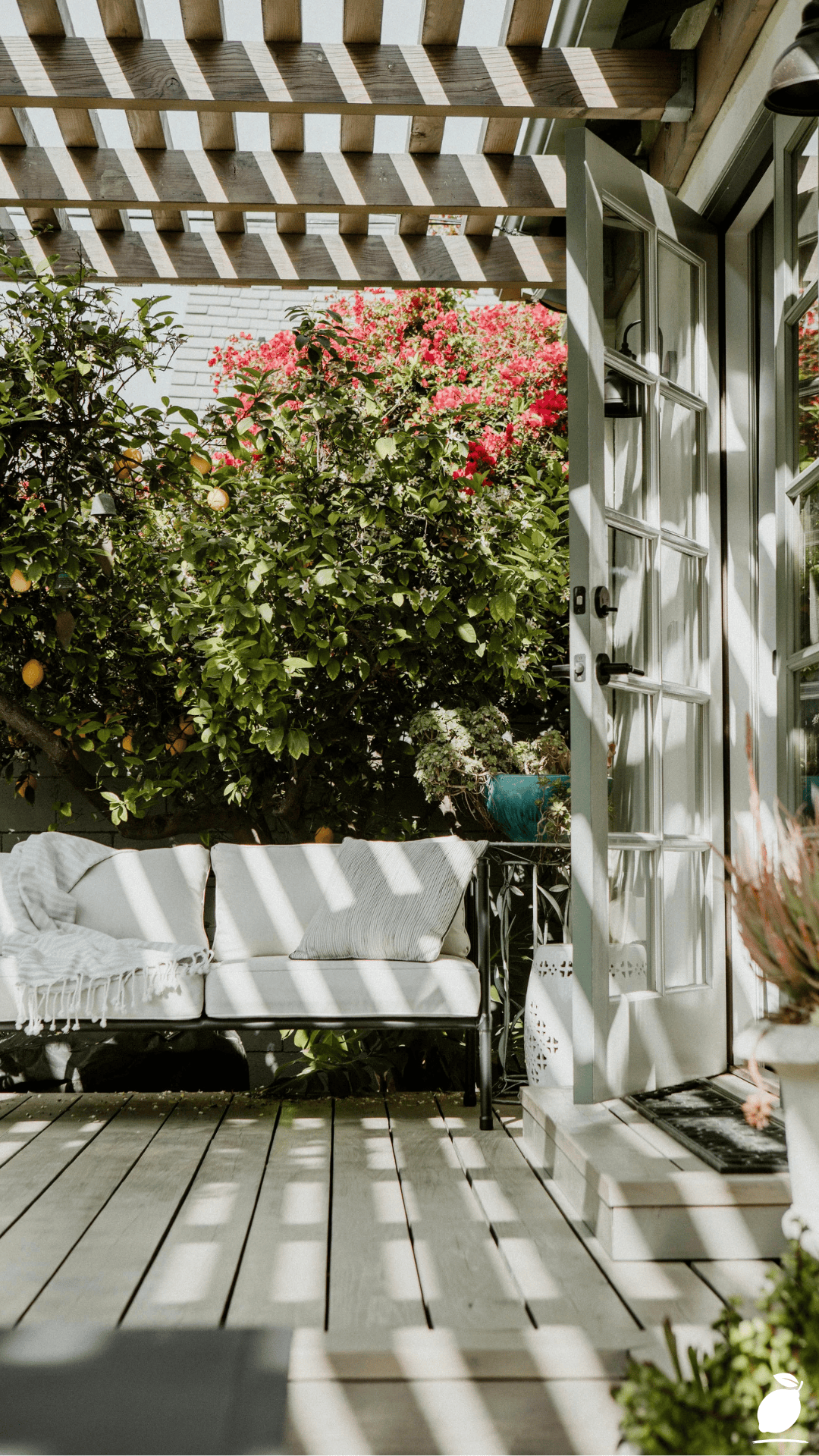

The patio in the image above is what attached to a house pergola ideas look like when they’re done right. A wooden pergola extends directly from the house structure, casting diagonal shadow patterns across wide light-brown wooden decking. A white outdoor daybed with gray cushions positioned under it. Behind the daybed, a wall of pink bougainvillea in full bloom and a citrus tree with yellow fruit. To the right, white-painted French doors partially open, a black metal lantern hanging from the porch ceiling. Small succulent pots at the edge. The pergola in the image is not a separate structure that happens to be near the house; it is attached, integrated, and architecturally continuous with the house exterior. That integration is what makes the patio feel like a room with one open wall rather than an outdoor space with some lumber overhead.
This guide walks through every decision in the attached house pergola ideas build sequence: the ledger board attachment, the post sizing and placement, the rafter installation, and the finishing details that turn a structural pergola into the specific outdoor living space the image demonstrates. Attached to a house, pergola ideas are more involved than a freestanding kit but produce significantly better results in terms of stability, visual integration, and the specific quality of outdoor space that connects to the home rather than sitting beside it.
The Attached to House Pergola Ideas Blueprint
Step 1: Plan the Attached to House Pergola Ideas Footprint and Permit Requirements
Attached to house pergola ideas projects begin with two parallel tracks: the physical layout plan and the permit inquiry. Unlike freestanding pergolas, which often fall below permit thresholds in most jurisdictions, attached to house pergola ideas structures connect to the house’s structural framing, which triggers permit requirements in most localities because the connection affects the building’s structural envelope.
Contact your local building department before purchasing any materials. In most jurisdictions, attached to house pergola ideas require a simple permit ($100 to $300), a basic plan showing the structure’s dimensions and attachment method, and an inspection at the ledger board attachment stage. Obtaining the permit is consistently worth the time and cost; it ensures the attachment method is structurally sound and protects you from liability and insurance issues if the structure is ever involved in an incident.
For the layout plan, measure the exterior wall face where the ledger will attach, the distance from the house wall to the planned outer pergola edge, and the clear height from the deck surface to the planned beam underside. Standard dimensions for attached-to-house pergola ideas are: 300cm to 450cm depth from house wall to outer beam, width matched to the exterior door or window grouping the pergola frames (the image’s pergola is sized to frame the French doors), and a beam underside height of 250cm to 270cm above the deck for comfortable headroom and visual proportion.
Step 2: Attach the Ledger Board to the House
The ledger board is the element attached to the house pergola that most distinguishes this project from a freestanding pergola build. It’s the horizontal timber fastened directly to the house’s structural framing that carries one end of all the pergola beams and transfers the structure’s load to the house itself. Getting the ledger right is the most technically important step in attaching a house pergola because an incorrectly attached ledger is both a safety risk and a waterproofing failure.
Use a 5cm × 20cm pressure-treated timber as the ledger board, the same specification used for deck ledger boards, which is closely related to this element structurally. Locate the house’s rim joist (the structural perimeter framing member directly behind the exterior cladding) using a stud finder and a small test hole drilled through the siding. The ledger must be fastened through the siding and sheathing into the rim joist with structural bolts, not screws, typically 12mm diameter lag bolts or through-bolts at 40cm centers.
Before fastening, install ledger flashing, a Z-shaped metal strip that tucks behind the siding above the ledger and laps over its face, directing any water that penetrates behind the siding outward rather than into the wall cavity. Ledger flashing is the attached to the house pergola ideas waterproofing detail that most often gets skipped and most consistently causes rot damage to the house framing behind the ledger within three to five years when omitted. Use galvanized or aluminum ledger flashing rated for exterior exposure and seal the top edge where it meets the siding with exterior caulk.
Step 3: Set the Outer Support Posts for the Attached to House Pergola Ideas
With the ledger installed and inspected, the outer posts are next attached to the house pergola’s structural element, the vertical supports at the pergola’s outer edge that carry the opposite ends of the beams from the ledger. Post count depends on the pergola’s width and beam span: most attached-to-house pergola ideas use two posts for widths up to 360cm, three posts for widths of 360cm to 540cm, and four posts for wider spans.
For an attached house pergola structure on an existing deck, post bases anchored to the deck framing are the most practical installation method; they avoid digging through the deck surface and connect the posts to the structural framing beneath without compromising the deck’s waterproofing layer. Use adjustable post base hardware (Simpson Strong-Tie or equivalent) fastened with structural bolts through the decking into the deck joists below.
Post size for most attached to house pergola ideas builds is 10cm × 10cm pressure-treated or cedar, the same size used in the hot tub pergola guide. Set each post base hardware anchor in the exact planned position before fastening permanently by laying out the full beam span dry and checking that the post positions align with the ledger bolt pattern above and the deck joist positions below.
Step 4: Install the Beams Across the Attached to House Pergola Ideas Structure
The beams are the horizontal members running from the ledger to the outer posts, the attached house pergola element that carries the roof rafters and spans the full depth of the pergola. Beam sizing is determined by span length and rafter load: for a standard 350cm to 400cm depth pergola with rafters and an optional shade sail or climbing plant, 5cm × 20cm doubled beams (two boards fastened together face-to-face) provide adequate bearing with comfortable visual proportions.
Attach beams to the ledger using joist hanger hardware (galvanized steel hangers rated for the beam size) and to the post tops using post cap hardware. Both connections should use structural screws or bolts, not toe-nailed connections hardware connections in attached to house pergola ideas carry predictable, rated loads, while toe-nailed connections under the lateral forces that wind applies to attached structures can work loose over time.
The image’s pergola shows beams with clean, square-cut ends, a contemporary aesthetic that suits most modern house styles. For a more traditional pergola look with decorative rafter tails, the beam ends can be cut to a curved or angled profile using a jigsaw before installation.
Step 5: Run the Rafters and Add the Finishing Details
Rafters are the perpendicular members that span from the ledger-parallel beams to the house wall (or from beam to beam in a freestanding section) and create the overhead slatted pattern that characterizes attached-to-house pergola ideas. The image’s diagonal shadow pattern across the deck is produced by the rafters. The precise spacing and overhang of those members determine the shadow density and the visual character of the finished structure.
Install rafters at 40cm to 60cm spacing using rafter tie hardware at each beam connection. For the specific shadow-and-light quality, the image demonstrates distinct diagonal bars of light and shadow rather than near-total shade. A 60 cm rafter spacing with 5cm × 10cm rafters is attached to the house pergola ideas specification that most closely replicates the image’s effect.
Allow rafter tails to extend 30cm to 45cm past the outer beam for the specific visual overhang that makes an attached-to-the-house pergola structure look architecturally complete rather than trimmed off at its outer edge. The extension softens the pergola’s outline and provides additional shade at the outer seating area perimeter.
Finish the attached house pergola ideas structure with the same waterproofing steps described in the hot tub pergola guide: penetrating oil sealant applied within 30 to 60 days of construction, stainless or hot-dipped galvanized hardware throughout, and annual inspection of the ledger connection and flashing condition.
Expert Secrets for Success
Pro-Tips for a Better Result
Use the French door or window opening width as the pergola’s width reference. The most visually satisfying attached to house pergola ideas are sized to align with the exterior door or window grouping they frame, as the image demonstrates with its pergola width matching the French door opening. This alignment makes the pergola read as an architectural extension of the house rather than a structure placed in front of it.
Stain or paint the pergola lumber to match the house trim color before installation. Pre-finishing pergola lumber on sawhorses before installation is significantly easier than painting an assembled structure, and it ensures all cut ends and connection points receive sealant coverage. The image’s white-painted French doors and the natural wood pergola create an intentional material contrast. Choose your finishing approach to complement the existing house exterior before the first beam goes up.
Add a ceiling fan rated for covered outdoor use in the pergola’s center bay. The image includes a black metal lantern near the French doors, adding a ceiling fan attached to house pergola ideas structures dramatically extends the comfortable use of the window in warm weather, moving air across the daybed or dining area during the hottest afternoon hours when shade alone is insufficient.
Plant climbing plants at the outer posts immediately after construction. Bougainvillea, wisteria, and climbing roses establish quickly on pergola posts and begin covering the structure within one to two growing seasons. The vibrant pink bougainvillea behind the image’s daybed demonstrates what this looks like at maturity. The pergola becomes the armature for a living, flowering wall that makes the outdoor space feel genuinely garden-integrated rather than built.
Common Mistakes to Avoid
Don’t attach the ledger to the siding without finding the structural rim joist. Attached to house pergola ideas ledgers fastened through siding into wall sheathing or foam insulation without reaching the structural rim joist have no load-bearing capacity and will fail under the pergola’s weight. Use a stud finder and a test drill to confirm the rim joist location before fastening the ledger.
Don’t skip the ledger flashing. Ledger flashing is the single most important waterproofing detail in any attached to house pergola ideas project. A ledger installed without flashing creates a water trap directly against the house sheathing that produces rot within three to five years, damage that costs five to ten times the flashing material to repair.
Don’t choose rafter spacing based on appearance alone. Rafters spaced too closely (under 30cm) create near-total shade that eliminates the light-and-shadow pattern that makes attached to house pergola ideas spaces feel bright and dynamic. Rafters spaced too widely (over 90cm) provide minimal shade and visual overhead presence. The 40cm to 60cm range is the attached to house pergola ideas specification that balances shade, shadow pattern, and structural adequacy.
Don’t omit the post base hardware in favor of direct decking penetration. Cutting holes through the deck surface to set posts directly into the framing below compromises the deck’s waterproofing layer and creates a long-term moisture entry point that rots the structural joists beneath. Post-base hardware anchored to the existing deck framing provides the same structural connection without breaching the deck surface.
Why Attached to House Pergola Ideas Matter
Attached to house pergola ideas matter because they solve the specific problem that most outdoor spaces share: the transition between inside and outside feels like a boundary rather than a continuation. A well-built pergola attached to the house, framing the door, extending the roofline, creating the overhead presence that makes an outdoor area feel like a room, dissolves that boundary. The French doors in the image don’t open onto an outdoor space; they open onto another room that happens to have a garden wall and a bougainvillea ceiling.
Research on indoor-outdoor living quality consistently identifies the presence of a covered, shaded, architecturally defined outdoor zone as the single most impactful factor in how frequently a home’s outdoor space gets used. Outdoor areas without overhead definition get used occasionally, in good weather, by people who make a specific decision to go outside. Outdoor areas with a pergola get used daily, habitually, in the way that any comfortable room in the house gets used because they feel like a room, and rooms are where domestic life happens.
Easy Peasy Life Matters is built on the conviction that the best home improvements are the ones that expand the territory of daily life rather than simply maintaining what already exists. Attached to house pergola ideas, done well, add a room to the house, not in square footage terms, but in the lived sense of a space where breakfast happens, where evenings wind down, where guests gather without anyone needing to make a plan. That’s a return that no square meter of interior renovation quite matches.
Frequently Asked Questions
Do attached to house pergola ideas require a building permit?
In most jurisdictions, yes, because an attached pergola connects to the house’s structural framing, it typically triggers permit requirements that a freestanding structure would not. Permit requirements, fees, and inspection requirements vary significantly by municipality. The permit process for attached to house pergola ideas is generally straightforward; a simple structural plan showing dimensions, post sizes, and ledger attachment method is usually sufficient, and the inspection provides valuable confirmation that the ledger connection is safe and code-compliant.
What is the best wood for attaching to a house pergola?
Pressure-treated pine is the most cost-effective option ($2 to $5 per linear foot) and is the correct specification for all below-ground and ledger-adjacent elements. Cedar ($4 to $8 per linear foot) is the premium natural choice for visible elements; it’s naturally rot-resistant, dimensionally stable, and takes stain beautifully. For the most visible parts attached to house pergola ideas (rafters, beam faces, post exteriors), cedar provides a warmer, more finished appearance than pressure-treated pine at a moderate premium.
How much does an attached to house pergola cost to build?
A DIY attached to a house pergola at approximately 350cm × 400cm using pressure-treated pine for the structure and cedar for visible elements typically costs $1,200 to $3,000 in materials, including lumber, hardware, concrete anchors, ledger flashing, and sealant. Professional installation adds $2,500 to $6,000 in labor. The major cost variables are lumber species (pine vs cedar), any electrical work for lighting or fans, and whether a roofing material (polycarbonate panels, shade sail) is added above the rafters.
How do I waterproof the ledger connection attached to house pergola ideas?
Proper ledger waterproofing in attached to house pergola ideas requires three elements working together: Z-flashing installed behind the siding above the ledger and lapping over its face, self-adhering waterproof membrane tape applied at the ledger-to-house wall joint before the flashing is installed, and exterior-grade caulk sealing the top edge of the flashing where it contacts the siding. The flashing redirects water outward; the membrane provides a secondary seal; the caulk prevents water from entering at the top edge where the flashing meets the siding.
Can attached-to-house pergola ideas be built on an existing deck?
Yes, and the image demonstrates exactly this. The key adaptation for an existing deck is using post base hardware anchored to the deck joists beneath the decking surface rather than digging footings through the deck. This requires locating the deck joists below the decking (mark them with chalk on the decking surface using a joist finder), fastening post base anchors with structural bolts that penetrate through the decking into the joists, and choosing a post base style that provides an adjustable connection for fine positioning adjustments.
